Forged Cryogenic Gate Valve Integral Flange 1/2-4 Inch | EN |

Key Specifications / Features

Model No.: YV-GTV-01 Hits: 178

Forged Cryogenic Gate Valve Manufacturer: Forged Cryogenic Gate Valve with Integral Flange, 1/2-4 Inch, ASME 150-2500 LB, API 602, ISO 15761, ASME B16.34.

Forged Gate Valve ASME B16.34 1/2 Inch Class 150 Class 2500 Class 1500 Class 900 Class 600 Class 800 Class 300 4 Inch 3 Inch 2-1/2 Inch 2 Inch 1-1/2 Inch 1-1/4 Inch 1 Inch ISO 15761 A105 A182 F304L A182 F304 Cryogenic

Request a quote

Detail Information

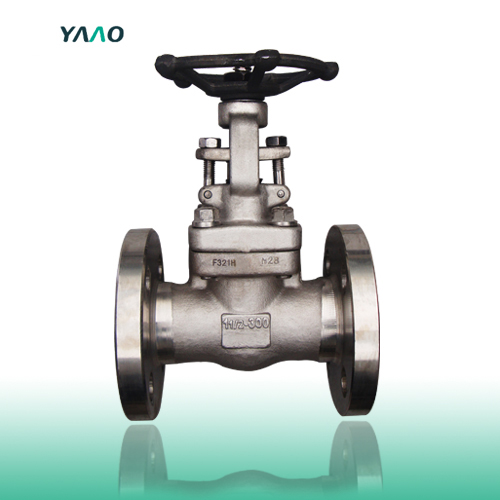

Forged Cryogenic Gate Valve
Design Specifications:
Body Material: ASTM A105.
Size: from NPS 1/2 to NPS 4 Inch.
Class: from ASME 150 to ASME 2500LB.
Design: API 602, ISO 15761, ASME B16.34.
Wall Thickness: API 602, ASME B16.34.
Pressure-temperature Rating: ASME B16.34.
Face-to-face Dimensions for Flanged Valves: ASME B16.10.
Flange Design: ASME B16.5.
Socket Weld Ends to ASME B16.11.
Screwed Ends (NPT) to ASME B1.20.1.
Butt Welding Ends: ASME B16.25.
Pressure Testing: API 598.

More Body Materials:
A105, A182 F304, A182 F304L, A182 F316, A182 F316L, A350 LF2, A182 F11, A182 F22, A182 F5, A182 F51, A182 F321.

Quality Assurance (QA):
Every step from procurement through production, welding, assembly, testing, and packaging is in accordance with quality programs and procedures (ASME Section III manual and ISO 9001 manual).
