Forged Cryogenic Globe Valve SW/NPT 3/8-4 Inch 150-2500 LB | EN |

Key Specifications / Features

Model No.: YV-GBV-05 Hits: 133

Forged Cryogenic Globe Valve Manufacturer: Forged Cryogenic Globe Valve, ASME B16.5 Flange, 3/8-4 Inch, 150-2500 LB, API 602, ISO 15761, ASME B16.34.

Forged Globe Valve SW Ends Threaded Ends 1-1/4 Inch Class 800 1/2 Inch 1 Inch 1-1/2 Inch 2 Inch 2-1/2 Inch 3 Inch 4 Inch 3/8 Inch Class 150 Class 300 Class 600 Class 900 Class 1500 Class 2500 ISO 15761 A350 LF2 A182 F5 A182 F51 A182 F321 Cryogenic

Request a quote

Detail Information

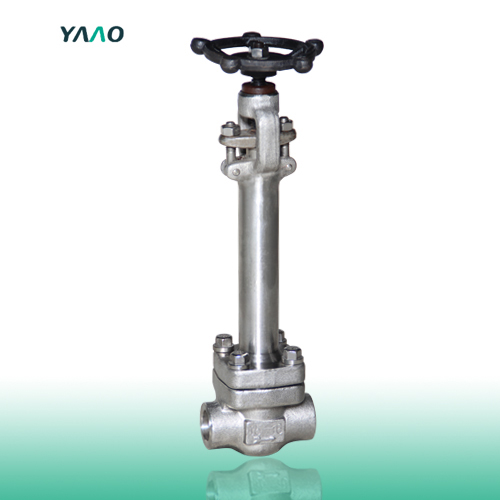

Forged Cryogenic Globe Valve
Design Specifications:
Body Material: ASTM A350 LF2.
Size: from NPS 3/8 to NPS 4 Inch.
CLASS: from ASME 150 to ASME 2500LB.
Design: API 602, ISO 15761, ASME B16.34.
Wall Thickness: API 602, ASME B16.34.
Pressure-temperature Rating: ASME B16.34.
Face-to-face Dimensions for Flanged Valves: ASME B16.10.
Flange Design: ASME B16.5.
Socket Weld Ends to ASME B16.11.
Screwed Ends (NPT) to ASME B1.20.1.
Butt Welding Ends: ASME B16.25.
Pressure Testing: API 598.

Body Material:
A105, A182 F304, A182 F304L, A182 F316, A182 F316L, A350 LF2, A182 F11, A182 F22, A182 F5, A182 F51, A182 F321.

Quality Assurance (QA):
Every step from procurement through production, welding, assembly, testing, and packaging is in accordance with quality programs and procedures (ASME Section III manual and ISO 9001 manual).
