SW A182 F316 Check Valve 3/8-4 Inch 150-2500 LB | EN |

Key Specifications / Features

Model No.: YV-CKV-04 Hits: 168

SW A182 F316 CHECK VALVEManufacturer: A182 F316 Check Valve, SW Ends, 3/8-4 Inch, 150-2500 LB, API 602, ISO 15761, ASME B16.34, API 598, ASME B16.11.

SW Ends Forged Check Valve 2-1/2 Inch Class 1500 Class 2500 Class 900 Class 600 Class 800 Class 300 Class 150 3/8 Inch 4 Inch 3 Inch 2 Inch 1-1/2 Inch 1-1/4 Inch 1 Inch 1/2 Inch ISO 15761 A182 F316 A182 F316L

Request a quote

Detail Information

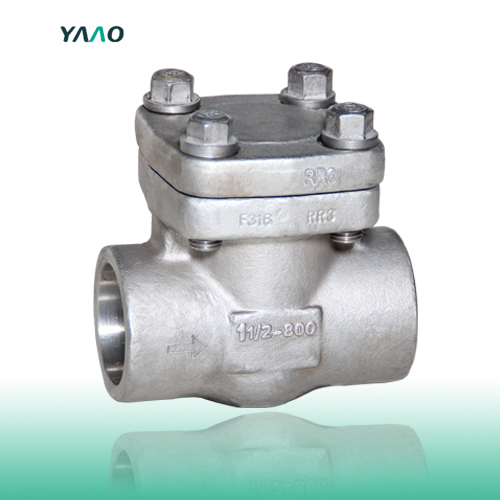

SW A182 F316 Check Valve
Design Specifications:
Body Material: ASTM A182 F316.
Size: from NPS 3/8 to NPS 4 Inch.
Class: from ASME 150 to ASME 2500LB.
Design: API 602, ISO 15761, ASME B16.34.
Wall Thickness: API 602, ASME B16.34.
Pressure-temperature Rating: ASME B16.34.
Face-to-face Dimensions for Flanged Valves: ASME B16.10.
Flange Design: ASME B16.5.
Socket Weld Ends to ASME B16.11.
Screwed Ends (NPT) to ASME B1.20.1.
Butt Welding Ends: ASME B16.25.
Pressure Testing: API 598.

More Body Materials:
A105, A182 F304, A182 F304L, A182 F316, A182 F316L, A350 LF2, A182 F11, A182 F22, A182 F5, A182 F51, A182 F321.

Quality Assurance (QA):
Every step from procurement through production, welding, assembly, testing, and packaging is in accordance with quality programs and procedures (ASME Section III manual and ISO 9001 manual).
